Delivering Excellence in Metals Since 1975
Steel that powers industries. Quality that builds trust.
Buttweld & Socketweld Fittings
Buttweld & Socketweld Fittings
High-strength, dimensionally accurate buttweld and socketweld fittings manufactured to ASTM A403 / ASME SA403, produced by forging, casting or pressing depending on grade and type. Trusted across petrochemical, power, marine, chemical and general engineering industries for consistent fit and corrosion resistance.
Types: 90°/45°/180° Elbows (Long & Short Radius), Equal & Reducing Tees, Crosses, Concentric & Eccentric Reducers, Caps, Long & Short Stub Ends, Swage Nipples, Barrel Nipples
Quick Overview
Parameter | Details |
Standard | ASTM A403 / ASME SA403 |
Size — Seamless | 1/2″ – 10″ |
Size — Welded | 1/2″ – 48″ (DN15–DN1200) |
Dimensional Standards | ASME B16.9, ASME B16.28, MSS SP-43, MSS SP-75, BS 4504, BS 1560, BS 10 |
Thickness | SCH 10 – SCH 160, STD, XS, XXS |
Bending Radius | 1D, 2D, 3D, 5D, 6D, 8D, 10D, or custom |
Manufacturing | Push / Press / Forge / Cast |
Test Certificates | EN 10204 3.1B, 100% Radiography, Raw Material Certificates, Third-Party Inspection |
Compliance | NACE MR0175 / MR0103 on request |
Materials & Grades
| Material Family | Typical Grades | Reference Standard |
| Stainless Steel | 304, 304L, 316, 316L, 316Ti, 309, 310, 310S, 321, 317L, 347, 347H, 904L, 17-4PH, 15-5PH, 410, 420 | ASTM A182 / A240 / A403 |
| Duplex | UNS S31803 / S32205 (Available on Request) | ASTM A182 / A403 |
| Super Duplex | UNS S32750 / S32760 (Available on Request) | ASTM A182 / A403 |

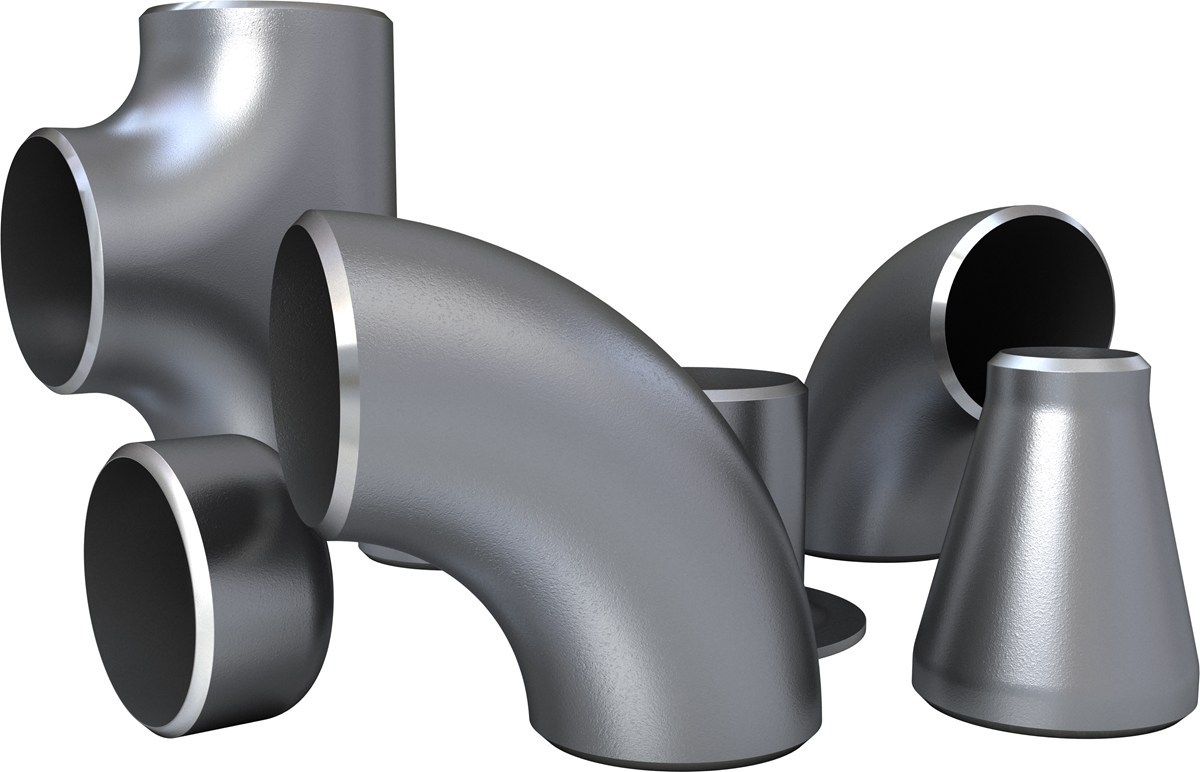

Buttweld Fittings
Buttweld fittings are welded end-to-end into the pipeline, so they carry the same wall thickness and schedule as the connecting pipe, and are well suited to high-pressure, large-bore and cyclic-service piping. Our range covers long and short radius elbows, equal and reducing tees, concentric and eccentric reducers, caps, crosses, and long and short stub ends.
Specification | Detail |
Governing Standard | ASTM/ASME A403 |
Dimensional Standards | ASME/ANSI B16.9, B16.28, MSS SP-43, MSS SP-75, BS 4504, BS 1560 |
Size Range | Seamless: 1/2″ to 10″ | Welded: 1/2″ to 48″ |
Wall Thickness | SCH 10 to SCH 160 and XXS, with NACE MR-01-75 compliance available |
Bend Radius | 1D, 2D, 3D, 5D, 6D, 8D, 10D or custom |
Manufacturing Process | Push, press, forge or cast, as applicable to fitting type |

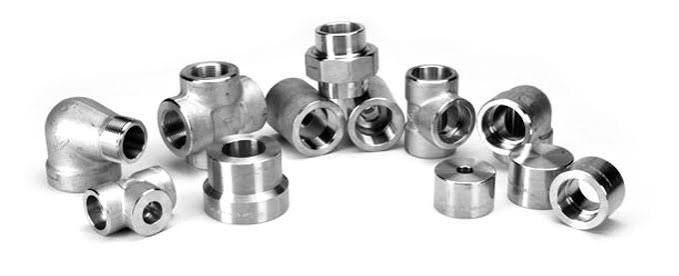

Socketweld & Threaded Fittings
Socketweld and threaded fittings are forged rather than welded from plate, and are the standard choice for smaller-bore piping where a socket or threaded connection is simpler to fabricate on site than a full buttweld joint. Our range covers 90° and 45° elbows, tees, crosses, couplings, half-couplings, unions, plugs, bushings and nipples.
Specification | Detail |
Governing Standard | ASTM/ASME A182 |
Dimensional Standards | ASME B16.11, MSS SP-79/83/95/97, BS 3799 |
Size Range | 1/8″ NB to 4″ NB |
Pressure Rating | Threaded: 2000/3000/6000 lb | Socketweld: 3000/6000/9000 lb |
Thread Type | NPT, BSPT, BSPP |
-
Industries & Applications Served
-
Why Choose Sailesh Metal Corporation
- Metals trade experience since 1975
- Buttweld and socketweld/threaded fittings across the same broad material range
- Support for high-pressure NACE-compliant requirements where specified
- Documentation support including EN 10204 3.1/3.2 and third-party inspection
- Mumbai-based supply operation serving buyers across India and export markets
-
How to Send an Enquiry
Share the following details so our team can quote accurately:
- Fitting type: elbow, tee, reducer, cap, cross, stub end, coupling, union etc.
- Connection type: buttweld or socketweld/threaded
- Material grade required
- Size and schedule/pressure rating
- Applicable standard and quantity
- Drawing, if the requirement is project-specific or non-standard
-
Frequently Asked Questions
- When should I use buttweld fittings instead of socketweld fittings?
- Buttweld fittings are generally used for larger-bore, higher-pressure piping where a full-penetration weld matches the pipe's own wall thickness. Socketweld and threaded fittings are typically used up to 4" NB, where a simpler joint is more practical.
- What is the maximum size available in socketweld/threaded fittings?
- Socketweld and threaded fittings are generally supplied from 1/8" NB to 4" NB, in pressure ratings up to 9000 lb for socketweld and 6000 lb for threaded connections.
- Can buttweld fittings be supplied in duplex and super duplex grades?
- Yes, buttweld fittings are available in UNS S31803, S32205 (2205), S32750 (2507) and S32760, in addition to standard stainless and nickel alloy grades.
- Do you provide 100% radiography testing on fittings?
- Yes, 100% radiography test reports can be provided for buttweld fittings on request, along with EN 10204 3.1/3.2 documentation and third-party inspection.
- What thread types are available for threaded fittings?
- NPT, BSPT and BSPP thread types are available, subject to size and fitting type.
